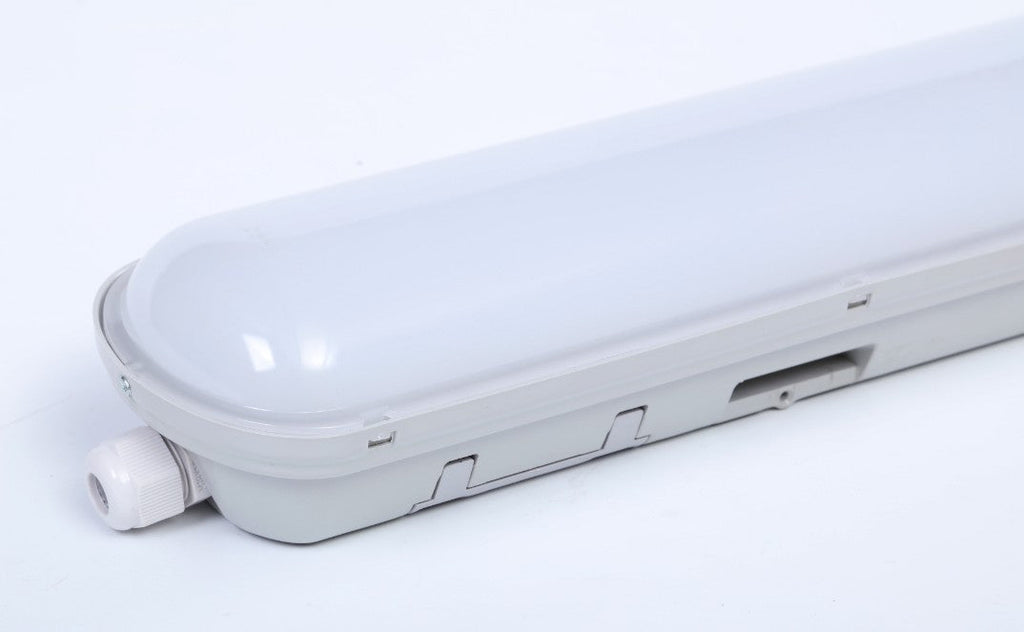

FL7556H2 (EM) LED dust- and moisture-proof luminaire with emergency function – 56 W, 6100 lm, 1500 mm, 4000 K, IP65

Name: FL7556H2 (EM) LED dust- and moisture-proof luminaire with emergency function – 56 W, 6100 lm, 1500 mm, 4000 K, IP65
Brand: LANDLITE
SKU: 581078
Price: 37149.00 HUF
Availability: InStock

37.149 Ft

Taxes included. Shipping calculated at checkout.

Energy label (F)Product information sheet (EPREL)

✓ In stock

Ships from our warehouse in Törökbálint
Invoice with every order
Warranty as required by law

Sold by: Kaito-Hungary Kft.Item no.: 581078

Reseller or contractor?B2B prices & login →

Questions about this product?landlite@landlite.eu · +36 23 511 460

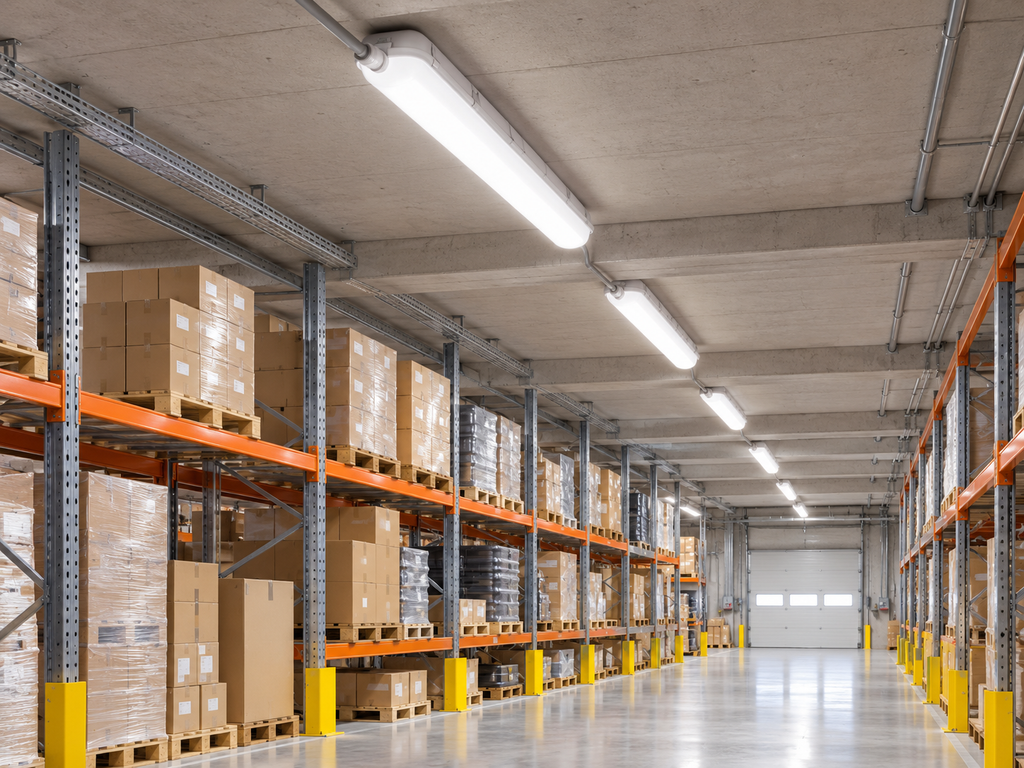

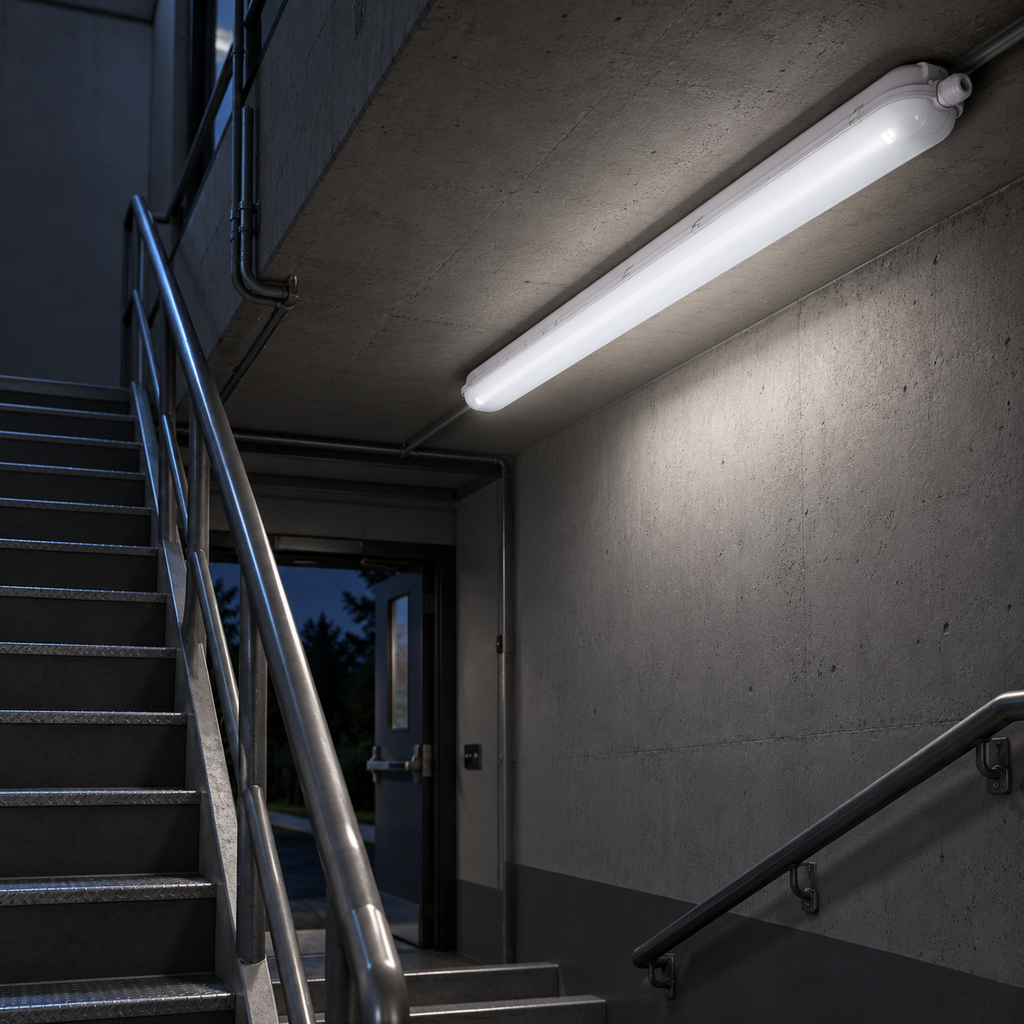

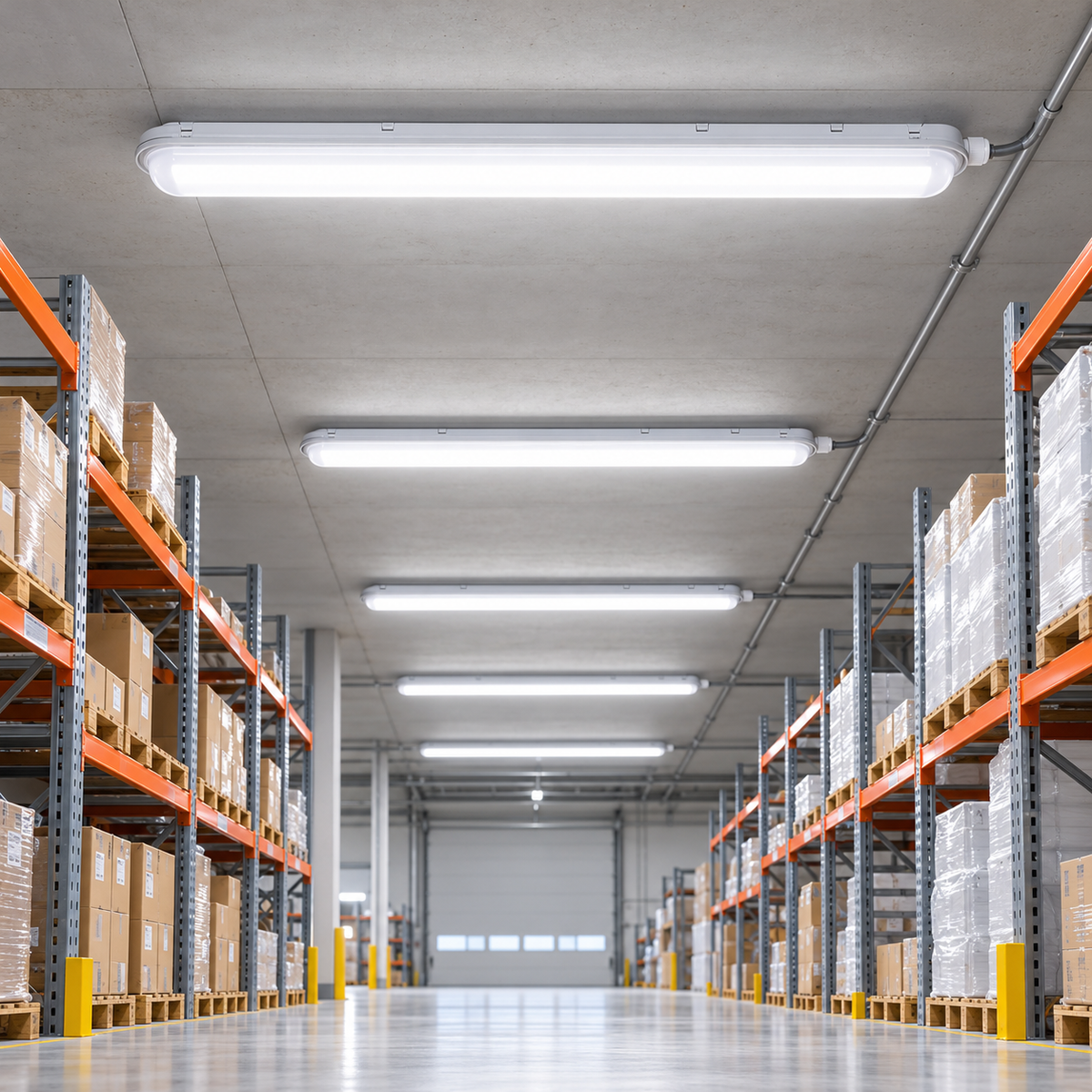

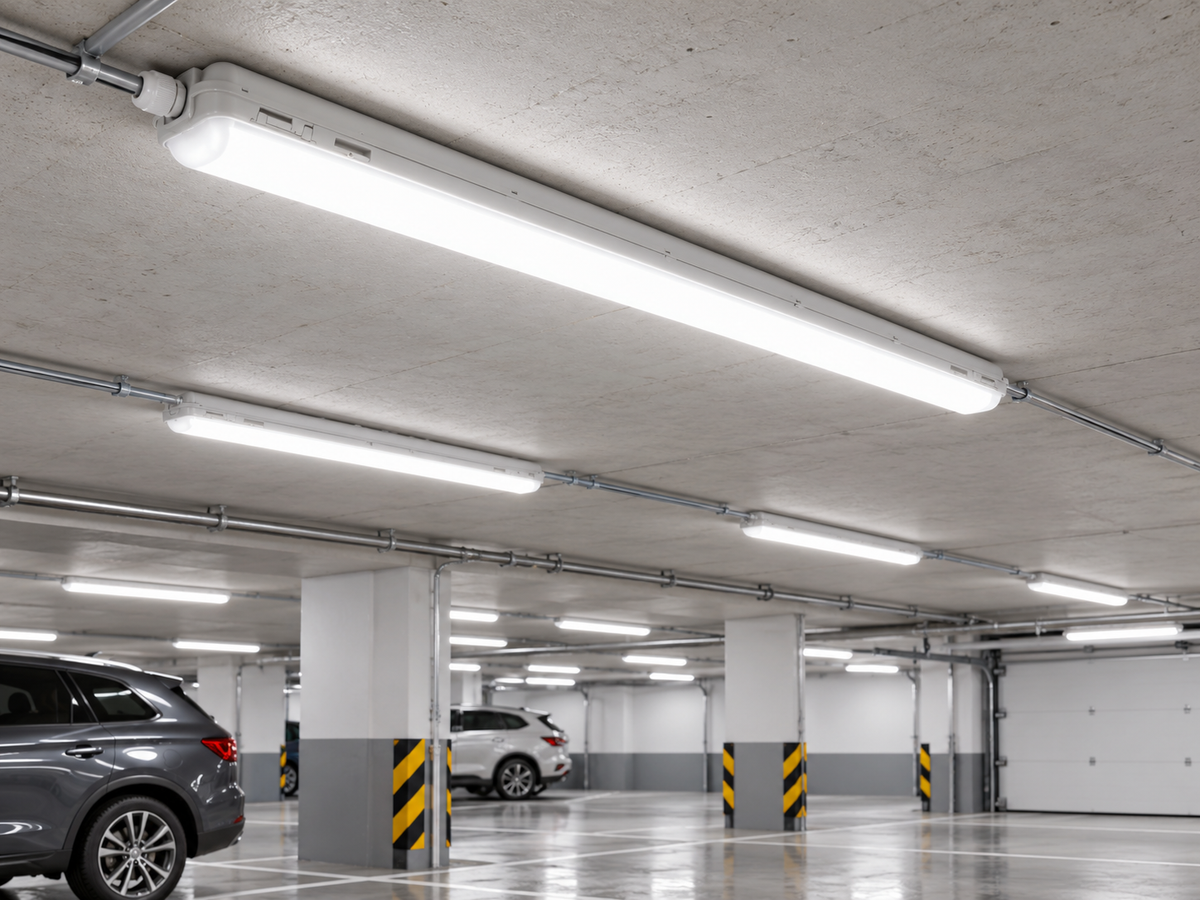

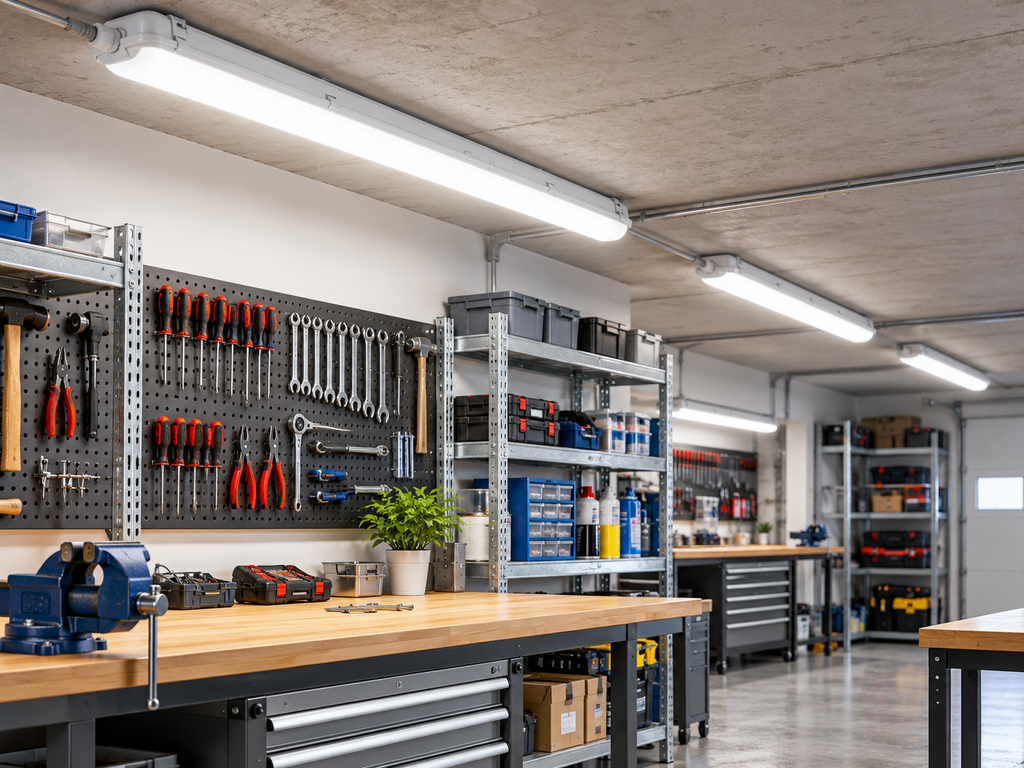

The FL7556H2 (EM) IP65 dust- and moisture-proof LED luminaire comes with a built-in emergency unit. It suits warehouses, garages, workshops, stairwells and industrial halls: in the event of a mains failure it provides 300 lm for 3 hours from its built-in battery.

Power: 56 W
Luminous flux: 6100 lm on mains, 300 lm in emergency mode (battery)
Emergency duration: 3 hours
Operating mode: maintained or non-maintained, selectable by wiring / switch
Colour temperature: 4000 K (neutral white), Ra > 80
Protection rating: IP65, protection class I
Operating voltage: 220–240 V AC, 50/60 Hz
Dimensions: 1500 × 100 × 68 mm, mounting distance 1120 mm
Battery: 4-cell Ni-Cd, 4.8 V, 2.0 Ah – full charging time 24 hours
Lifetime: 30,000 hours, ≥ 15,000 switching cycles
Not dimmable, LEDs not replaceable
Colour: grey

Installation must be carried out by a qualified electrician.

At a glance

Emergency (battery)3h · 300lm
BatteryNi-Cd 4.8V · 2.0Ah
Ingress protectionIP65
Impact ratingIK08
Protection classI
Colour renderingRa≥ 80
Efficacy109lm/W
Beam angle120°
Ambient temp.−20 … +40 °C
DimmableNo

Downloads

Datasheet PDF
Installation / user manual online · printable
Energy label EPREL
EPREL product information sheet PDF

Technical data · IP65 LED (FL / DF) series

Item no.	Type	Power	Voltage	Colour temp.	Luminous flux	Efficacy	Colour rendering	Beam angle	Ingress protection	Impact rating	Protection class	Ambient temp.	Rated life	Energy class	Dimensions
581065	FL7425H	28 W	220–240 V AC, 50/60 Hz	4000 K	2,300 lm	82 lm/W	Ra ≥ 80	120°	IP65	IK08	I	−20 … +40 °C	30,000 h	–	1200 × 76 × 65 mm
R0181202840	DF-7136-2	28 W	220–240 V AC, 50/60 Hz	4000 K	2,500 lm	89 lm/W	Ra ≥ 80	120°	IP65	IK08	I	−20 … +40 °C	30,000 h	–	1200 × 76 × 68 mm
581071	FL7440H2	48 W	220–240 V AC, 50/60 Hz	4000 K	5,000 lm	104 lm/W	Ra ≥ 80	120°	IP65	IK08	I	−20 … +40 °C	30,000 h	F	1200 × 100 × 68 mm
01CEL1015	FL7450H	56 W	220–240 V AC, 50/60 Hz	4000 K	5,000 lm	89 lm/W	Ra ≥ 80	120°	IP65	IK08	I	−20 … +40 °C	30,000 h	–	1200 × 100 × 68 mm
R0181205640	DF-7236-2	56 W	220–240 V AC, 50/60 Hz	4000 K	5,000 lm	89 lm/W	Ra ≥ 80	120°	IP65	IK08	I	−20 … +40 °C	30,000 h	–	1200 × 100 × 70 mm
581085	FL7528H2	28 W	220–240 V AC, 50/60 Hz	4000 K	3,400 lm	121 lm/W	Ra ≥ 80	120°	IP65	IK08	I	−20 … +40 °C	30,000 h	–	1500 × 76 × 65 mm
581073	FL7556H2	56 W	220–240 V AC, 50/60 Hz	4000 K	6,100 lm	109 lm/W	Ra ≥ 80	120°	IP65	IK08	I	−20 … +40 °C	30,000 h	G	1500 × 100 × 68 mm
581080A	FL7560N-A	56 W	220–240 V AC, 50/60 Hz	4000 K	7,300 lm	130 lm/W	Ra ≥ 80	120°	IP65	IK08	I	−20 … +40 °C	30,000 h	–	1500 × 92 × 60 mm
With emergency lighting – built-in battery (EM)keeps lighting during a mains failure
581078EM 3 h	FL7556H2 (EM)	56 W	220–240 V AC, 50/60 Hz	4000 K	6,100 lm	109 lm/W	Ra ≥ 80	120°	IP65	IK08	I	−20 … +40 °C	30,000 h	F	1500 × 100 × 68 mm

Subject to technical changes. Tolerance of luminous flux and power ±10 %.

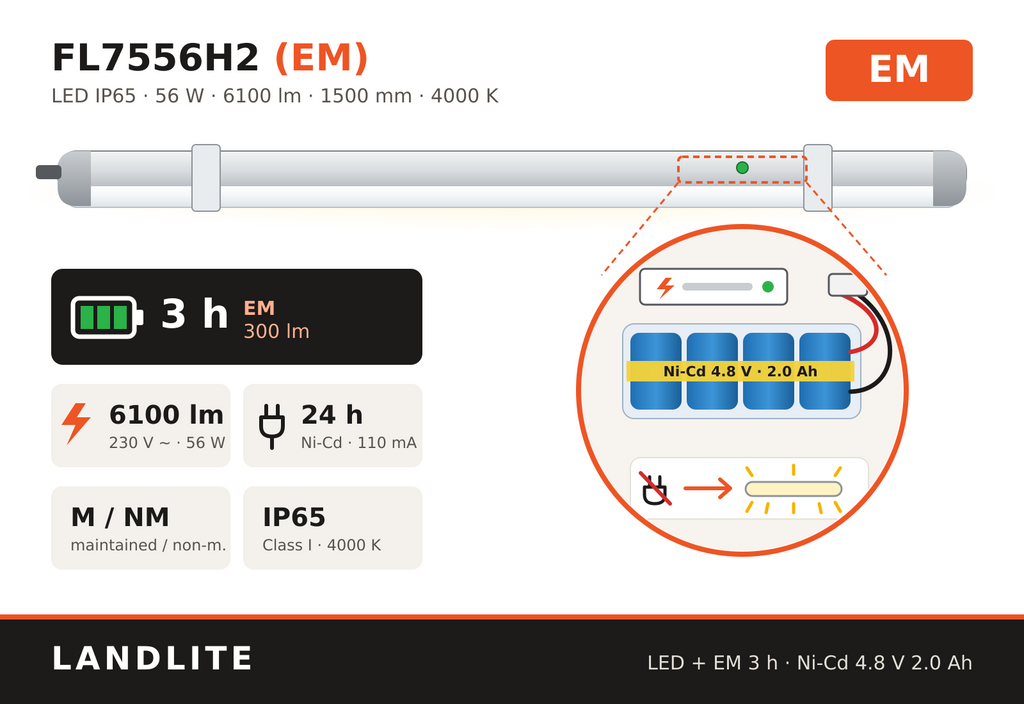

Emergency lighting – built-in battery

This version contains an emergency unit with battery: if the mains fails, it keeps lighting automatically.

3 h300 lmNi-Cd 4.8 V · 2.0 Ah

Emergency duration	3 h
Luminous flux in emergency mode	300 lm
Operating mode	maintained or non-maintained, selectable by wiring / switch
Battery type	Ni-Cd, 4-cell
Nominal voltage	4.8 V
Capacity	2.0 Ah
Charging current	110 mA
Full charging time	24 h
Charging indicator	LED indicator
