ANCO MC4 connector for solar panels, 1.5–6 mm², 1000 V DC, 30 A, IP65, black, 1 pc
545 Ft
Skip to product information
Brand: ANCO
ANCO MC4 connector for solar panels, 1.5–6 mm², 1000 V DC, 30 A, IP65, black, 1 pc
545 Ft
✓ In stock
- Ships from our warehouse in Törökbálint
- Invoice with every order
- Warranty as required by law
Sold by: Kaito-Hungary Kft.Item no.: 321551
Questions about this product?landlite@landlite.eu · +36 23 511 460

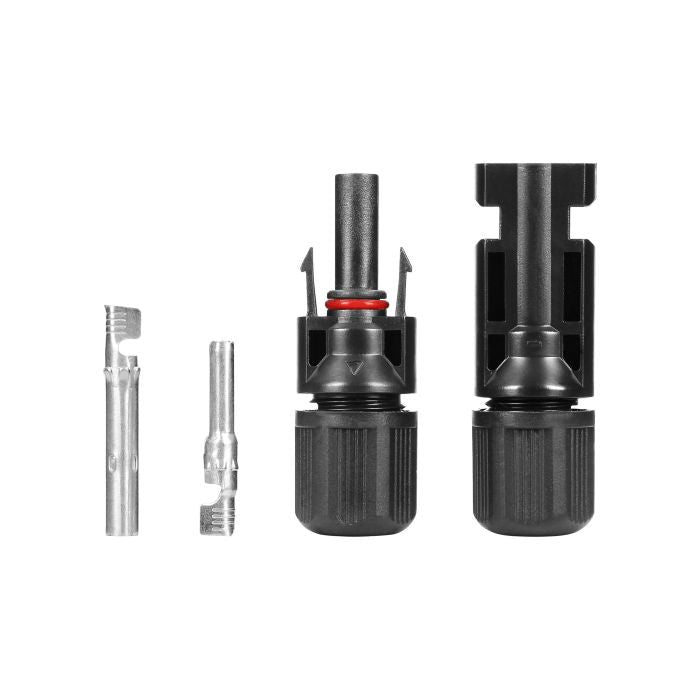

Crimp-type MC4 connector for DC cables of solar power systems, UV-resistant, outdoor design.
- Contact material: tinned copper
- Housing material: PC/PPO
- Number of conductors: 1
- Core size: 1.5–6 mm²
- Housing flammability rating: UL94 V0
- Resistant to UV radiation
- Connection type: crimping
- Ambient temperature: -40 °C … +90 °C
- Max. contact temperature: 105 °C
- Insulation voltage: 6 kV
- Contact resistance: 0.5 mOhm
- Rated voltage: 1000 V DC
- Rated current: 30 A
- Protection rating: IP65
- Size: 18 x 300 mm
- Colour: black
- Pack size: 1 pc
- Product code: 321551
- EAN: 5908254804335
